TTK - Tactical TSCM Kit

The TTK (Tactical TSCM Kit) is a carry-on, deployment-ready equipment package for the frequent traveler who needs a portable sweep kit with a lot of capability.

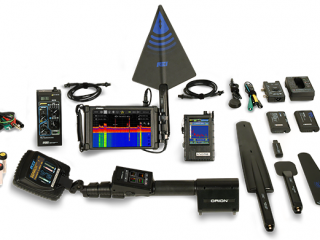

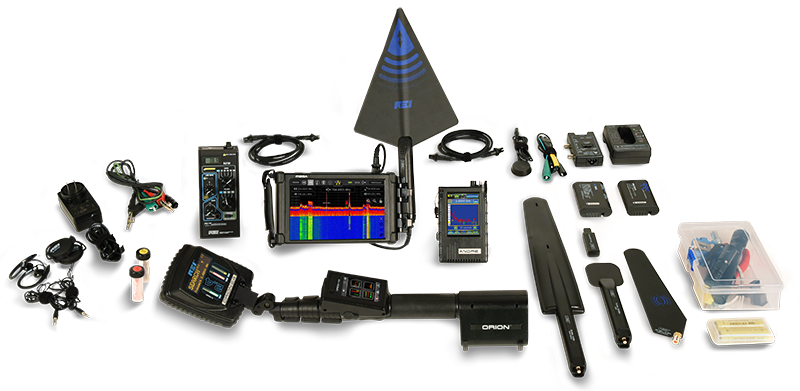

TTK weighs 25 lbs/11.5 kg and includes these proven TSCM products:

MESA 2.0 hand-held Spectrum Analyzer for portable RF analysis up to 6 GHz (12 GHz with Downconverter Antenna)
ANDRE Broadband Detector for near field detection and location of RF transmitters up to 6 GHz (12 GHz with Downconverter Antenna)
ORION 2.4 HX Non-Linear Junction Detector for finding hidden electronics (active and inactive) (FCC 3.3W or G 6.6W)
CMA Countermeasures Amplifier for detecting wired surveillance devices
Multimeter with built-in thermal imaging (U.S. only, not included in export kits)





        Request Price Quote        View Features & Applications

    Images & Video

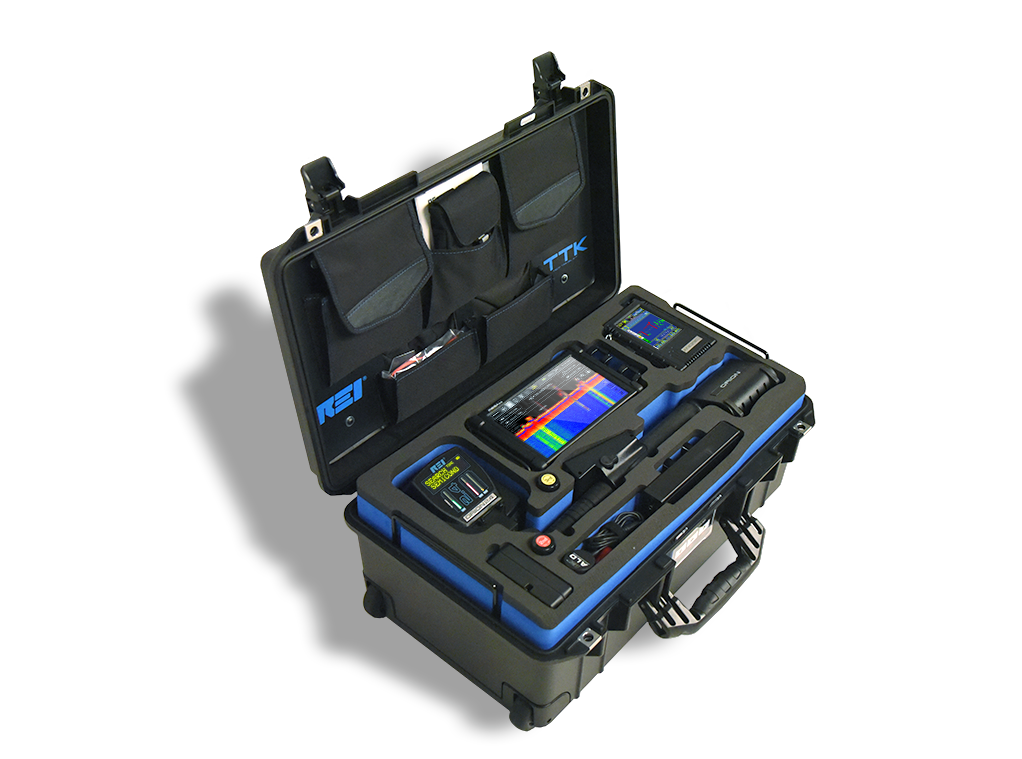

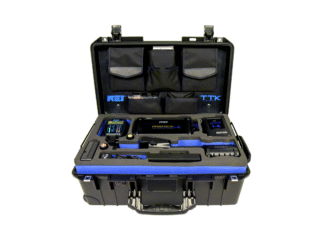

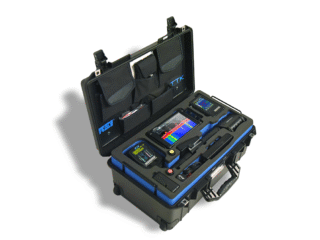

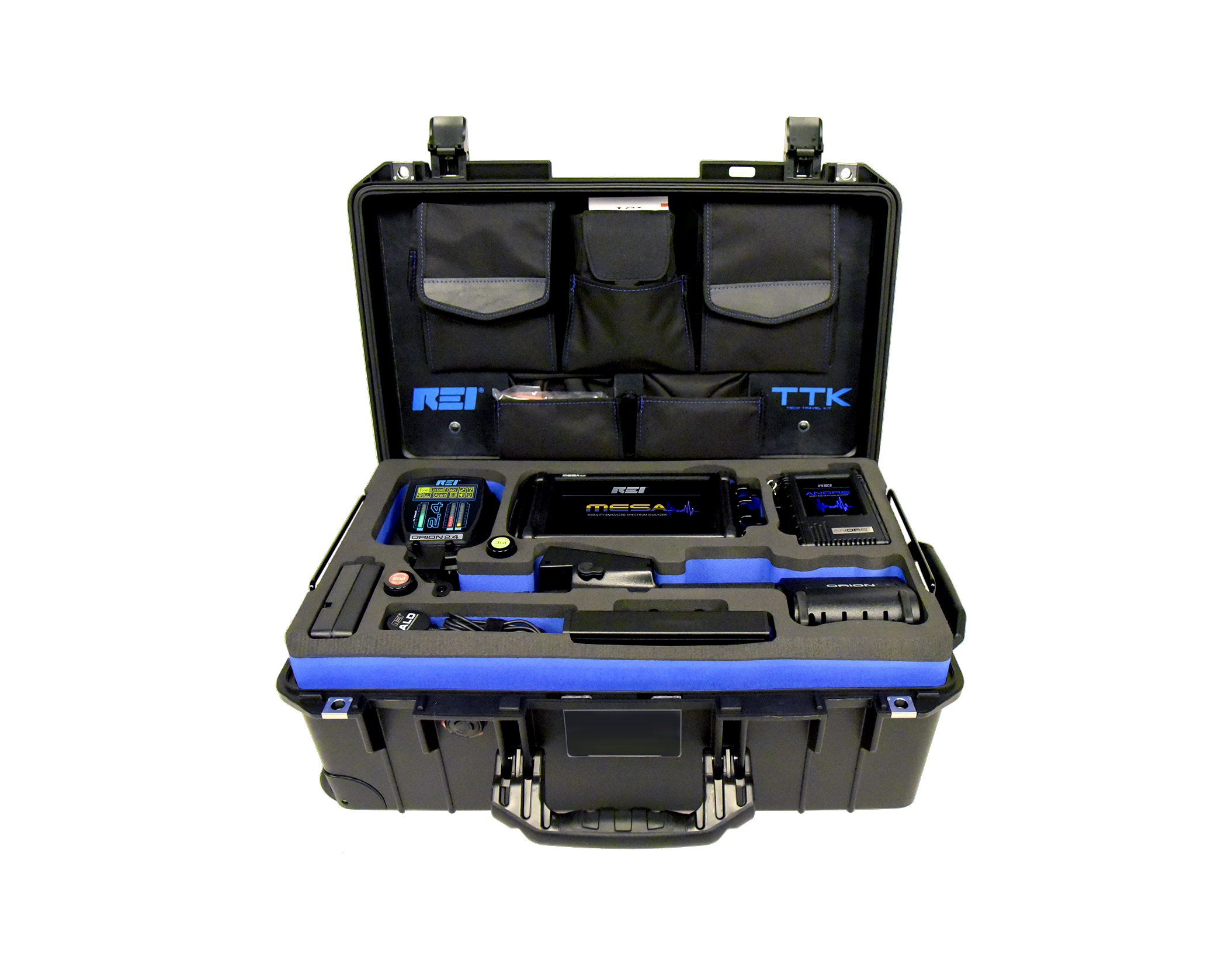

    The REI TTK is packaged in a durable Pelican™ 1535 Air maximum carry-on size case with:

    • Two custom REI foam product insert layers
    • Quiet rolling stainless-steel bearing wheels
    • Retractable extension handle
    • Business card holder
    • Accessory pockets – lid
    • Auto purge valve – keeps water and dust out while balancing air pressure
    • Super-light proprietary HPX2™ Polymer
    • Maximum airline carry on size*

    * Check with your airline for exact measurement and weight requirements


    MESA 2.0 hand-held Spectrum Analyzer for portable RF analysis

    • 10kHz to 6GHz spectrum analyzer, extends to 12GHz with Downconverting Antenna
    • Sweeps 200GHz per second
    • SmartBars® Mode (Patented)
    • Mobile Bands Mode showing RF levels of customizable spans
    • WiFi and Bluetooth modes to identify access points
    • Full Touchscreen control, with visual, audible, and haptic vibration alerts
    • MCP (Multi-Carrier Probe) – Carrier Current
    • Data Logging
    • Cached Peak Function (Patent Pending)

    ANDRE Broadband Detector for near field detection and location of RF transmitters up to 12 GHz

    • Broadband RF detection up to 12GHz with Downcoverting Antenna, plus Infrared and Visible Light
    • Histogram Display showing RF levels over periods of time
    • Signal information and band details generate a signal list of the strongest signals

    ORION 2.4 HX Non-Linear Junction Detector for finding hidden electronics (active and inactive) (FCC 3.3W or G 6.6W)

    • Frequency band: 2.404 GHz – 2.472 GHz
    • Transmit modulation: pulsing, digital spread spectrum 1.25 MHz bandwidth
    • More than 60 available transmit channels
    • Digitally correlated 2nd and 3rd harmonic response
    • Touch screen display showing harmonic responses and a spectrum view of operation bands
    • Visual, audible, and haptic vibration alerts

    CMA-100 Countermeasures Amplifier for detecting wired surveillance devices

    • 110dB of Gain
    • Built-in AC/DC voltmeter
    • Ability to bias voltage between -15V and +15V DC

    Multimeter/Thermal Imager (U.S. Only, not included in export kits)

    Pelican 1535 Air maximum carry-on size
    • Exterior (L×W×D) 21.96 x 13.97 x 8.98 in / 55.8 x 35.5 x 22.8 cm
    • Interior (L×W×D)20.39 x 11.20 x 7.21 in /51.8 x 28.4 x 18.3 cm
    • Complete package weighs <25 lbs/11.3 kg
    • Weight Empty 8.69 lbs (3.9 kg)
    • Padlock Hole Diameter 5/16″ (8 mm)
    • 2 Wheels

    * Check with your airline for exact measurement and weight requirements


    MESA 2.0  Specifications

    • Sweep speed > 200GHz/second
    • Operating frequency range: 10kHz – 6GHz/12GHz with Down Converter Antenna
    • DANL – Noise Floor: 312.5 kHz RBW with Pre-amp: -90 dBm, 9.765 kHz RBW with Pre-amp: -110 dBm
    • Detection Methods: RF, Carrier Current, Acoustic Leakage, IR/Visible Light, Ultrasonic
    • Audio Demodulation AM/FM demodulation with filter options: Auto, 200kHz, 20kHz, 5kHz
    • Alerts: Haptic, Visual, Audible
    • Supply AC:  100-240V/50-60Hz; single rechargeable Li-ion battery (includes 1 spare)
    • Run Time:   ~3 hours (typical) per battery
    • Charge time:   ~3 hours per battery (typical)
    • Operating Modes: SmartBars™, Mobile Bands, WiFi, Bluetooth, Jamming Interference Detection

    ANDRE  Specifications

    • Frequency range: 10kHz to 6GHz (12GHz with Down Converting antenna)
    • Detection Methods: RF, Carrier Current, Acoustic Leakage, IR/Visible Light, Ultrasonic
    • Histogram display: renders signal strength display of RF levels over time
    • 3.5 in touchscreen display
    • Live audio playback
    • Extra USB charger included

    ORION Specifications

    • 3.3 W EIRP; *G model: 6.6 W EIRP
    • Manual or auto power control
    • 2.404 GHz – 2.472 GHz frequency band
    • Digital spread spectrum 1.25MHz bandwidth
    • FCC and CE
    • Digitally correlated
    • -140dBm for 2nd and 3rd harmonics
    • Haptic, audible, and visual alerts
    • Input AC: 100-240 V, 50-60 Hz
    • Run time: >4 hours per battery (typical)
    • Charge time: 2.5 hours per battery

    *G model available to entities, agencies, and persons not restricted by FCC. Both power level models are CE marked for public safety and security


    CMA-100 Specifications

    • 115 dB gain in manual mode
    • Digital voltmeter, 3.5 digit, auto zero, auto polarity, +/-199.9V AC/DC
    • Battery: 9V Alkaline (5 – 30 hours typical run time)

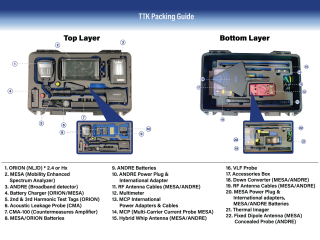

    MESA 2.0
    Whip Hybrid Dipole Antenna (30 MHz – 6 GHz)
    Fixed Hybrid Dipole (500 MHz – 6 GHz)
    Log Periodic Down Converter 500MHz – 12GHz
    VLF 10kHz – 30MHz
    3 Powered Antenna cables (48”, for MESA & ANDRE)
    Carrier Current MCP (100 kHz – 60 MHz), cables, int’l power adapters
    Euro Power Plug for MCP
    1 Battery in the unit
    GPS Dongle
    MESA power supply

    ANDRE
    2x 18650 Batteries in the Unit
    2x 18650 Spare Batteries
    USB Wall Adapter
    UK and Euro Plug
    USB Charging Cable
    Modular phone adapter and cable
    Wrist Lanyard

    ORION 2.4 HX  (FCC 3.3W or G 6.6W)
    2nd Harmonic Test Tag
    3rd Harmonic Test Tag
    1 Battery in the Unit
    ORION Power supply/cable for Charging

    CMA-100
    9V Battery (1 in unit and 1 spare)
    Mono to Stereo headphone adapter
    ALP Acoustic Leakage Probe
    External Battery Charger (MESA/ORION)

    Other Accessories
    Multimeter/Thermal Imager and test leads
    2 Spare MESA/ORION batteries

    Accessories box with the following:
    Thumb Drive
    Lens Cleaner
    Earbud Set in case
    UV White Flashlight
    Travel Screwdriver Set
    Needle Nose Pliers

    Pelican 1535 Air Case
