ORION HGO-4000 Non-Linear Junction Detector

The ORION HGO-4000 is REI’s original high gain Non-Linear Junction Detector for special applications. The ORION HGO-4000 can locate listening devices and semiconductors in walls floors, ceilings, fixtures, furniture or containers and provides a user the capability to detect hidden electronic devices, regardless of whether the device is radiating, hard wired, or even turned off.

Efficiency: high transmit power for rapidly searching large areas and the circularly polarized antenna reduces search time and improves reliability

Usability: second and third harmonic operation includes advanced algorithms for minimizing false alarms as well as listening capability for each harmonic

Portability: balanced, ergonomic, lightweight design with no cables or bulky transceiver units to carry


    Request Price Quote        View More Features & Benefits

Images

Features & Benefits

  • Second and third harmonic operation includes advanced algorithms for minimizing false alarms as well as listening capability for each harmonic
  • Dynamic power control for locating threats; automatic or manual control
  • Synthesized transceiver provides frequency stability and agility to automatically search for clean operating frequencies
  • Circular, polarized antenna removes risk of missing a threat due to incorrect antenna polarization
  • High transmit power for rapidly searching a large area
  • Standard camcorder battery with long run time and quick charge functions

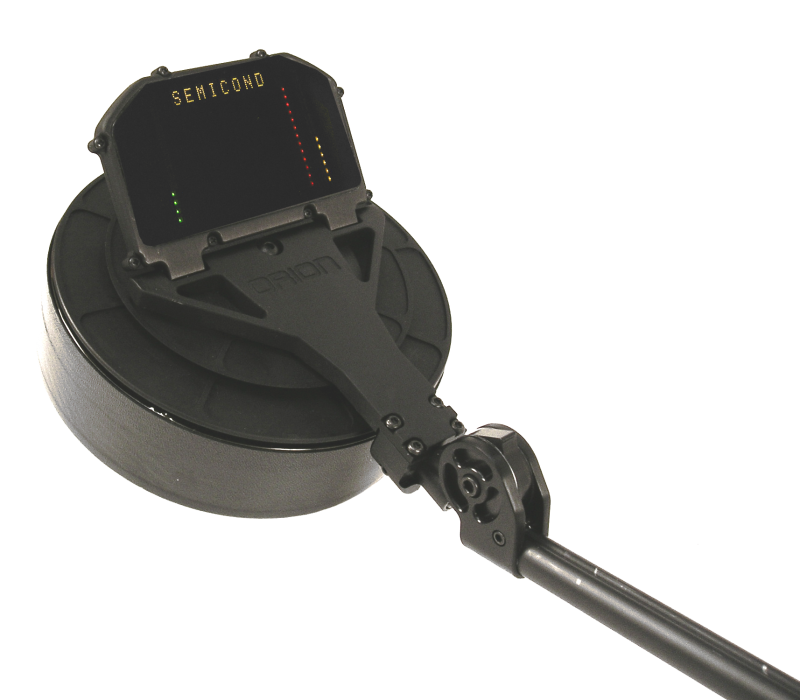

  • Wireless headphones and graphic display for simultaneous audio & visual information

Specifications

TRANSMITTER

Frequency bands: 840-915 MHz in 200 kHz steps
Transmit power: 30 milliwatts minimum to approximately 3 watts effective radiated power (ERP)
Power control: manual or auto control with 30 dB range

RECEIVER

Frequency bands: second (1680-1830 MHz) or third (2520-2745 MHz) harmonic of transmit frequency
Sensitivity: -133 dBm for both harmonics
DSP S/W integration: programmable between 6 and 18 dB gain in sensitivity performance
Receiver bandwidth: 3 kHz

MECHANICAL

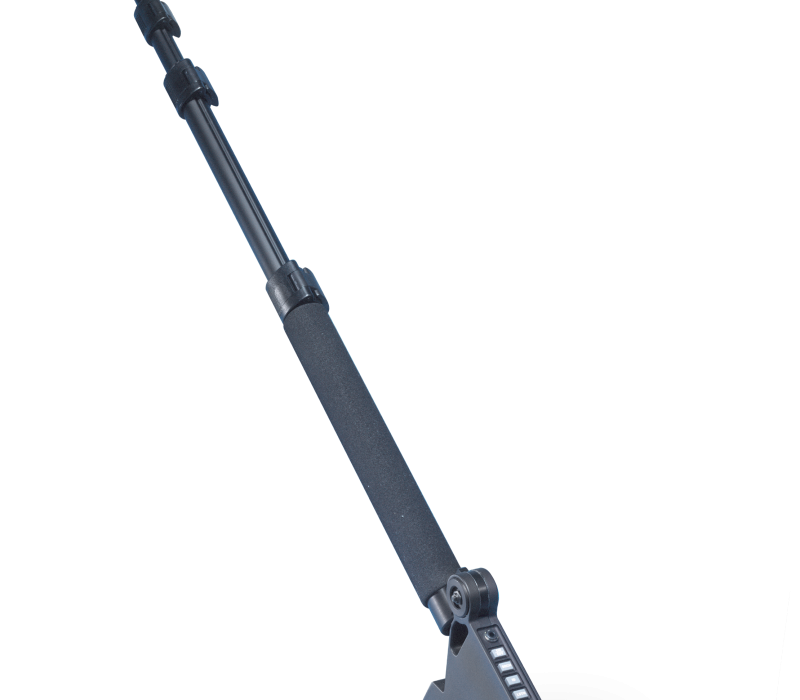

Extension lengths: 16–51 in (40.6–129.5 cm)
Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
Unit weight: 3.3 lbs (1.5 kg)
Unit weight with battery: 3.7 lbs. (1.7kg)
Case weight including unit and accessories: 12.8 lbs (5.8 kg)
Setup time (including power-up self-test): 25 seconds

BATTERY

Input AC: 100–240 V, 50–60 Hz
Run time: 3 hours per battery (typical)
Charge time: 1 hour per battery
Batteries: (2 incl.) 7.2 V NiMH
